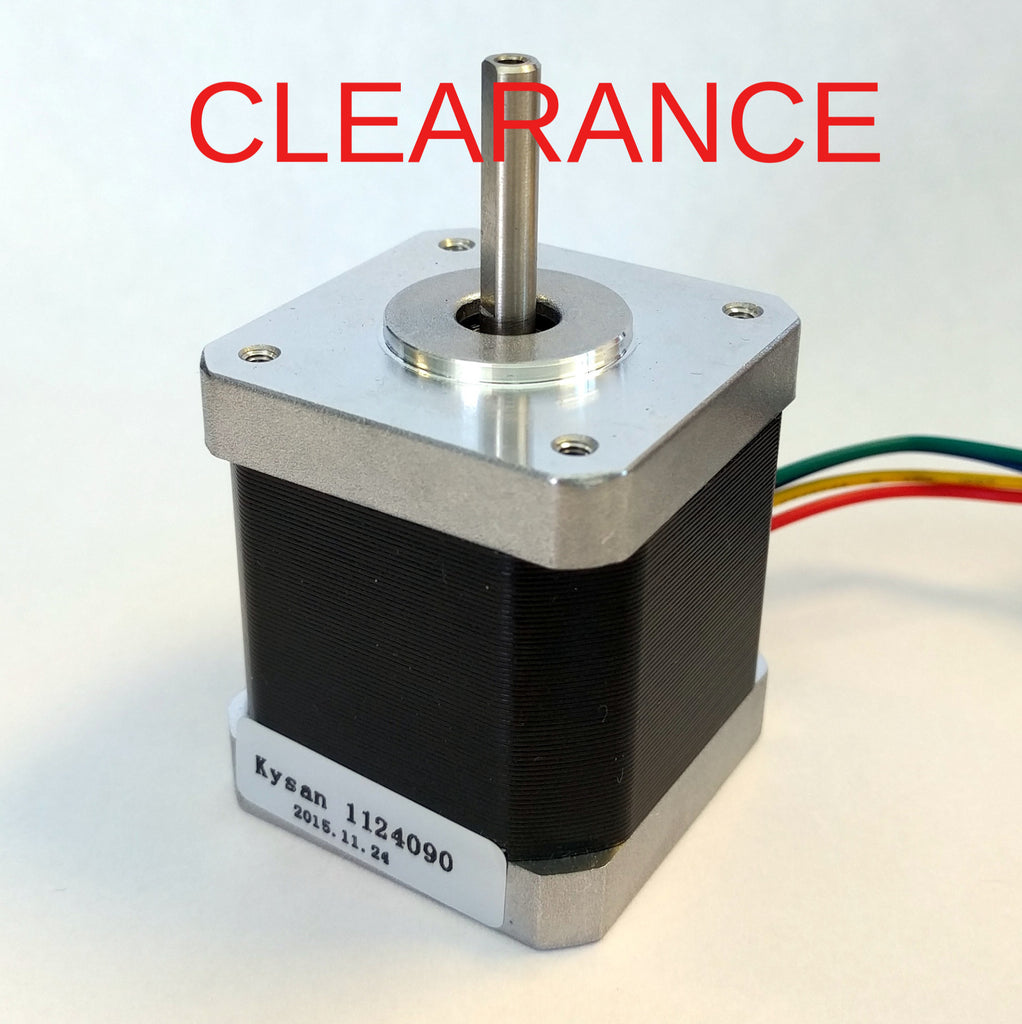

Kysan 1124090 Nema 17 Stepper Motor *Wrong Casing* CLEARANCE

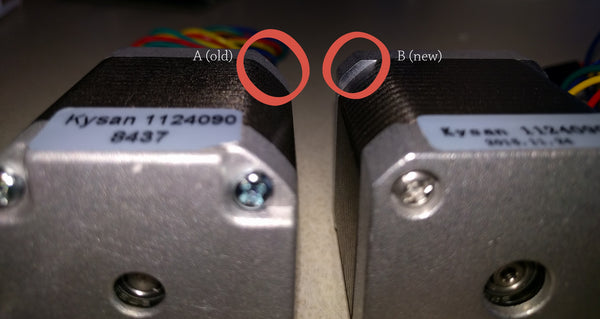

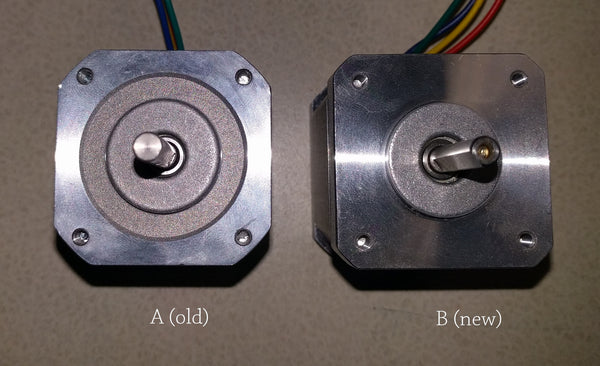

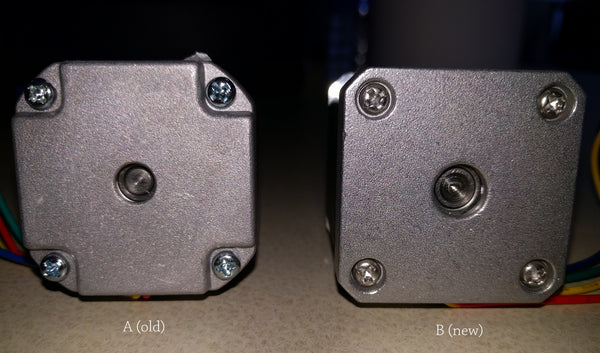

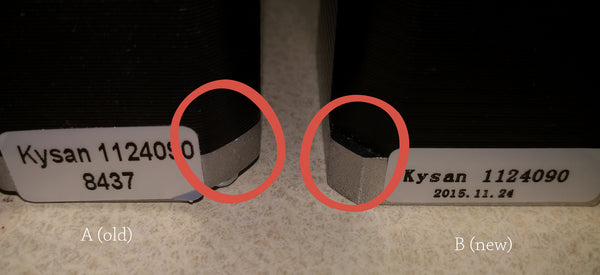

This motor is being sold on clearance due to a change made during production to the motor casing. Motor was assembled with a different casing than our standard Kysan 1124090. Motors are labeled as Kysan SKU #1124090, and match all specifications other than case design.

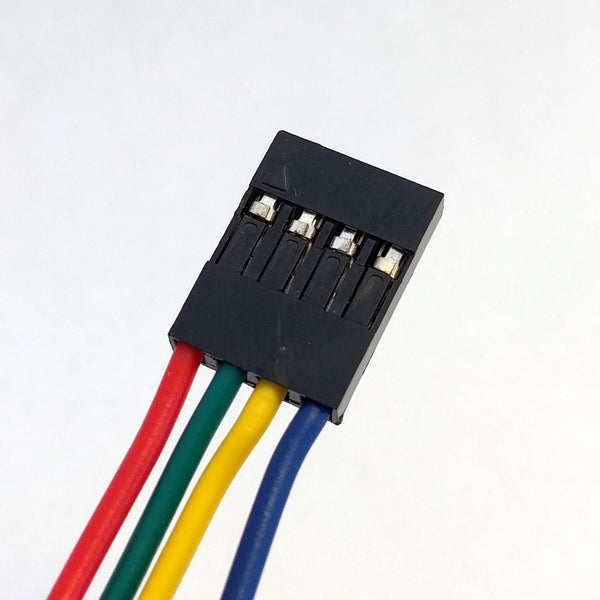

This stepper motor is a strong choice for any project. Motor has permanent wire lead, with 1x4 housing connector on end.
5 motors needed for Prusa Mendel.
4 needed for OG Mendel.
Holding Torque: 5.5Kg.cm
Rated Voltage: 4.2V
NO.of Phase: 2
Step Angle: 1.8° ± 5%
Resistance Per Phase: 2.8Ω± 10%
Inductance Per Phase: 4.8mH± 20%
Current Per Phase: 1.5A
Shaft: 5mm diameter w/ one flat
Insulation Class: Class B
Dielectric Strength: 100Mohm
Operation Temp Range: -20 ~ +40° C
Lead Wire: 22AWG / 750mm
4 pin 2.54mm connector
Data sheet available here. ***Please note, data sheet specs should be identical for this motor, other than casing.
